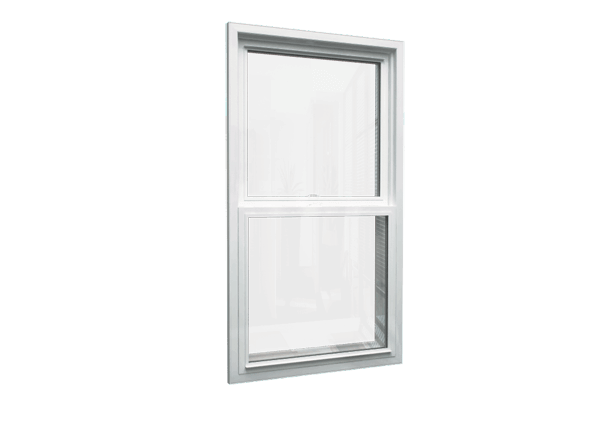

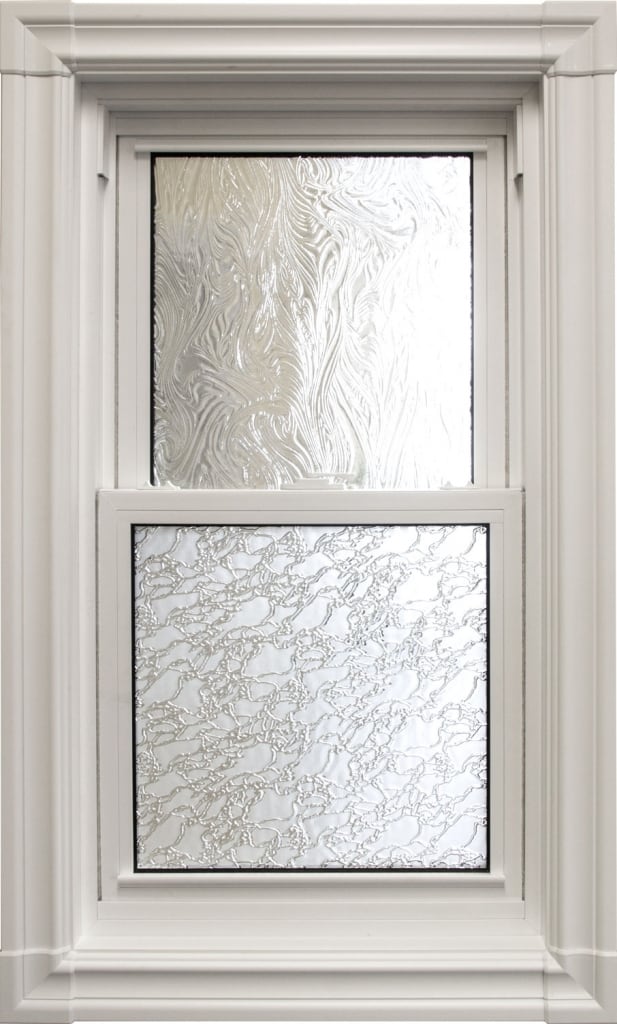

Double Hung Tilt Windows

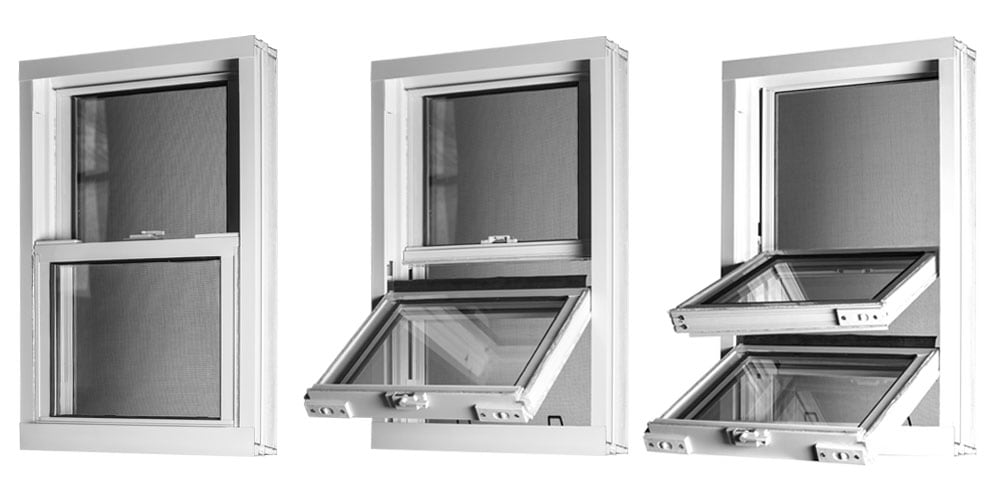

Our creative team of engineers has created this popular window design to satisfy your ventilation needs as well as your taste and style. Double Hung Tilt windows create a sophisticated look in your home while providing practical functionality. They contain two sashes, both of which tilt inwards, as well as a full size screen. This design allows fresh air to enter the room when opened, while provides thermal security when closed.
For those who prefer the natural warmth and traditional aesthetics of wood, double hung windows are also available in Aluminum Clad Wood option. If you choose this option, your casement windows will have a wood frame which will be covered on the outside with aluminum structure making each window extremely resistant to weather conditions.
Watch the double hung video:
Double Hung Series features
- Fully welded frame and sash
- Pocket sill for added security and protection against wind and air infiltration
- Triple, fully replaceable weather stripping around both sashes
- Stainless steel constant force balances
- Color – keyed cam locks
- Dual ventilation limit latches
- Full screen with high strength screen cloth
- Double strength, hardened, 7/8” insulating glass with INEX warm edge spacer
- Energy Star R qualified with optional Low – E / Argon glazing
Window Rating
Test |
Rating
|
Air Tightness |
A2
|
Water Tightness |
B4
|
Wind Load Resistance |
C4
|
Ease of Operation |
Pass
|
Resistance Force Entry/ Sash Tests/ Screen Test |
Pass
|
Construction:
– Sealed glass unit has 13/16″ overall thickness.
– Fusion welding corners provide attractive appearance & eliminate the need for adhesive and sealants. There are no imperfections on the completely watertight and airtight surface. Internal walls are also welded for increased overall structural strength.
– These windows have the highest number of internal air chambers, giving them outstanding insulation and sound abatement qualities, as well as thermal efficiency and increased sturdiness.
– A choice of maintenance free PVC jamb extensions, frame moldings and corner blocks are available to enhance inside finishing.
– All windows are made of an exclusive 100% uPVC powder compound that is entirely lead-free. This special compound gives the system a better resistance to impact and dislocation. The windows are maintenance-free and will not crack, blister or warp.
Windows Installation
Installation is crucially important for a good performance and a long lifespan of a window.
Therefore we work only with experienced teams of installers who know their job and are true professionals of the industry.
Our experts are capable of doing the following types of window installation: retrofit, stud-to-stud and brick-to-brick.
[one-third-first]
Retrofit installation features:
- fast and inexpensive comparing to other types
- involves window sash removal only
- frame and both exterior and interior trims stay untouched
- ideal for situations when existing window frame is in a good condition
[/one-third-first][one-third]
Stud-to-stud installation features:
- old window frame is completely removed up to the house framing
- aluminum flashing finish with caulking for the exterior – to ensure resistance to water
- choice of interior jamb and trim
- perfect for replacing windows with damaged frames and/or with poor insulation
- provides better energy efficiency comparing to retrofit
[/one-third][one-third]
Brick-to-brick installation features:
- old window frame is completely removed up to the house framing
- vinyl brick mould is applied on the new windows; the gap between vinyl brick mould and wall is insulated with foam and sealed with caulking
- choice of interior jamb and trim
- perfect for replacing windows with damaged frames and/or with poor insulation
- provides better energy efficiency comparing to retrofit
[/one-third]
Jambs and interior finishing options
There are four standard vinyl jamb sizes available for installation of your windows. Besides, at Northview we can also provide wood jamb extensions as well as corner blocks and frame mouldings – just to ensure our customers receive smooth and beautifully looking windows.
Brickmold:
Our brickmoulds are manufactured from durable and maintenance-free PVC powder compound and provide a year round excellent performance in the Canadian climate. Our brickmoulds are available in a variety of sizes and colours so your new windows can blend seamlessly into the exterior appearance of your house.
Trim options:
We offer a large assortment of vinyl trim options for exquisite and stylish finishing touch. Aesthetics of our trims are enhanced by advanced technology which ensures the material will stay durable and free from colour changing for years. We offer standard and custom palette of colours.
